MATH 237: Calculus 3 for Honours Mathematics

Estimated study time: 1 hr 2 min

Table of contents

Chapter 1: Graphs of Scalar Functions

1.1 Scalar Functions

A scalar function maps points in \(\mathbb{R}^n\) to the real line. The domain \(D(f)\) is the subset of \(\mathbb{R}^n\) where \(f\) is defined, and the range \(R(f)\) is the set of output values. For \(f : \mathbb{R}^2 \to \mathbb{R}\), we write \(z = f(x,y)\).

Definition (Scalar Function). A scalar function \(f : \mathbb{R}^n \to \mathbb{R}\) is a function whose domain is a subset of \(\mathbb{R}^n\) and whose range is a subset of \(\mathbb{R}\).

We use \(\mathbf{x}\) to denote a point in \(\mathbb{R}^n\). For instance, \(\mathbf{a} \in \mathbb{R}^2\) means \(\mathbf{a} = (a,b)\) and \(\mathbf{x} \in \mathbb{R}^3\) means \(\mathbf{x} = (x,y,z)\).

1.2 Geometric Interpretation of \(z = f(x,y)\)

The graph of \(f : \mathbb{R}^2 \to \mathbb{R}\) is the set of all points \((a, b, f(a,b))\) in \(\mathbb{R}^3\) with \((a,b) \in D(f)\). We think of \(f(a,b)\) as the height of the surface above \((a,b)\).

Definition (Level Curves). For a function \(f : \mathbb{R}^2 \to \mathbb{R}\), the level curves of \(f\) are the curves \(k = f(x,y)\), where \(k\) is a constant in the range of \(f\).

Definition (Cross-Sections). The cross-sections of a surface \(z = f(x,y)\) are the curves given by \(z = f(c, y)\) or \(z = f(x, d)\).

For a function \(f : \mathbb{R}^3 \to \mathbb{R}\), the equations \(f(x,y,z) = k\) define the level surfaces of \(f\). More generally, for \(f : \mathbb{R}^n \to \mathbb{R}\), the equations \(f(\mathbf{x}) = k\) are the level sets of \(f\).

Chapter 2: Limits

2.1 Definition of a Limit

We generalize the single-variable limit concept to functions of several variables. The key idea is that we can now approach a point from infinitely many directions, not just from left and right.

Definition (Neighborhood). A neighborhood of a point \(\mathbf{a} \in \mathbb{R}^2\) is the set \(N_r(\mathbf{a}) = \{\mathbf{x} \in \mathbb{R}^2 \mid \|\mathbf{x} - \mathbf{a}\| < r\}\), where \(\|\mathbf{x} - \mathbf{a}\| = \sqrt{(x-a)^2 + (y-b)^2}\).

\[ |f(\mathbf{x}) - L| < \varepsilon \quad \text{whenever} \quad 0 < \|\mathbf{x} - \mathbf{a}\| < \delta. \]

2.2 Limit Theorems

Theorem 2.1 (Limit Laws). Let \(f, g : \mathbb{R}^2 \to \mathbb{R}\). If \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} f(\mathbf{x})\) and \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} g(\mathbf{x})\) both exist, then

(a) \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} [f(\mathbf{x}) + g(\mathbf{x})] = \lim_{\mathbf{x}\to\mathbf{a}} f(\mathbf{x}) + \lim_{\mathbf{x}\to\mathbf{a}} g(\mathbf{x})\).

(b) \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} [f(\mathbf{x})g(\mathbf{x})] = \left(\lim_{\mathbf{x}\to\mathbf{a}} f(\mathbf{x})\right)\left(\lim_{\mathbf{x}\to\mathbf{a}} g(\mathbf{x})\right)\).

(c) \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} \frac{f(\mathbf{x})}{g(\mathbf{x})} = \frac{\lim_{\mathbf{x}\to\mathbf{a}} f(\mathbf{x})}{\lim_{\mathbf{x}\to\mathbf{a}} g(\mathbf{x})}\), provided \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} g(\mathbf{x}) \neq 0\).

Corollary 2.1 (Uniqueness of Limits). If \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} f(\mathbf{x})\) exists, then the limit is unique.

2.3 Proving a Limit Does Not Exist

To show a limit does not exist, approach the point along two different paths that yield different limiting values. Common strategies include testing along lines \(y = mx\) (showing the result depends on \(m\)) or along curves like \(y = x^2\).

2.4 Proving a Limit Exists

Theorem 2.2 (Squeeze Theorem). For \(f : \mathbb{R}^2 \to \mathbb{R}\), if there exists a function \(B(\mathbf{x})\) such that \(|f(\mathbf{x}) - L| \leq B(\mathbf{x})\) for all \(\mathbf{x} \neq \mathbf{a}\) in some neighborhood of \(\mathbf{a}\), and \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} B(\mathbf{x}) = 0\), then \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} f(\mathbf{x}) = L\).

The most commonly used inequalities when applying the Squeeze Theorem are: the Triangle Inequality, the fact that \(a < a + c\) for \(c > 0\), and the cosine inequality \(2|x||y| \leq x^2 + y^2\). A particularly useful consequence is \(|x| = \sqrt{x^2} \leq \sqrt{x^2 + y^2}\).

All definitions and theorems in this chapter generalize to \(f : \mathbb{R}^n \to \mathbb{R}\) by replacing \(\mathbb{R}^2\) with \(\mathbb{R}^n\) and using the Euclidean distance \(\|\mathbf{x} - \mathbf{a}\| = \sqrt{(x_1 - a_1)^2 + \cdots + (x_n - a_n)^2}\).

Chapter 3: Continuous Functions

3.1 Definition of a Continuous Function

\[ \lim_{\mathbf{x}\to\mathbf{a}} f(\mathbf{x}) = f(\mathbf{a}). \]

If \(f\) is continuous at every point in a set \(D \subset \mathbb{R}^2\), then \(f\) is continuous on \(D\).

This definition implicitly requires three things: (1) \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} f(\mathbf{x})\) exists, (2) \(f\) is defined at \(\mathbf{a}\), and (3) the two values are equal.

3.2 The Continuity Theorems

Definition (Operations on Functions). Let \(f, g : \mathbb{R}^2 \to \mathbb{R}\) and \(\mathbf{x} \in D(f) \cap D(g)\). Then:

The sum: \((f+g)(\mathbf{x}) = f(\mathbf{x}) + g(\mathbf{x})\).
The product: \((fg)(\mathbf{x}) = f(\mathbf{x})g(\mathbf{x})\).
The quotient: \(\left(\frac{f}{g}\right)(\mathbf{x}) = \frac{f(\mathbf{x})}{g(\mathbf{x})}\), if \(g(\mathbf{x}) \neq 0\).

Definition (Composite Function). Let \(g : \mathbb{R} \to \mathbb{R}\) and \(f : \mathbb{R}^2 \to \mathbb{R}\). The composite function \(g \circ f : \mathbb{R}^2 \to \mathbb{R}\) is defined by \((g \circ f)(\mathbf{x}) = g(f(\mathbf{x}))\) for all \(\mathbf{x}\) such that \(f(\mathbf{x}) \in D(g)\).

Theorem 3.1 (Sum and Product). If \(f : \mathbb{R}^2 \to \mathbb{R}\) and \(g : \mathbb{R}^2 \to \mathbb{R}\) are continuous at \(\mathbf{a}\), then \(f + g\) and \(fg\) are continuous at \(\mathbf{a}\).

Theorem 3.2 (Quotient). If \(f : \mathbb{R}^2 \to \mathbb{R}\) and \(g : \mathbb{R}^2 \to \mathbb{R}\) are both continuous at \(\mathbf{a}\) and \(g(\mathbf{a}) \neq 0\), then the quotient \(\frac{f}{g}\) is continuous at \(\mathbf{a}\).

Theorem 3.3 (Composition). If \(f : \mathbb{R}^2 \to \mathbb{R}\) is continuous at \(\mathbf{a}\) and \(g : \mathbb{R} \to \mathbb{R}\) is continuous at \(f(\mathbf{a})\), then the composition \(g \circ f\) is continuous at \(\mathbf{a}\).

The following basic functions are known to be continuous on their domains: constants, coordinate functions \(x\) and \(y\), \(\ln(\cdot)\), \(e^{(\cdot)}\), trigonometric and inverse trigonometric functions, and the absolute value. These, combined with the theorems above, allow one to prove continuity of complicated functions “by inspection.”

Chapter 4: The Linear Approximation

4.1 Partial Derivatives

\[ \frac{\partial f}{\partial x}(a,b) = \lim_{h \to 0} \frac{f(a+h,b) - f(a,b)}{h}, \qquad \frac{\partial f}{\partial y}(a,b) = \lim_{h \to 0} \frac{f(a,b+h) - f(a,b)}{h}, \]

provided that these limits exist.

Alternative notations include \(f_x, f_y\) (subscript) and \(D_1 f, D_2 f\) (operator notation, where the subscript refers to the position of the variable). For \(f : \mathbb{R}^n \to \mathbb{R}\), one differentiates with respect to the \(i\)-th variable while holding all others fixed.

4.2 Second Partial Derivatives

There are four second partial derivatives of \(f : \mathbb{R}^2 \to \mathbb{R}\): \(f_{xx}, f_{xy}, f_{yx}, f_{yy}\).

\[ H_f(x,y) = \begin{bmatrix} f_{xx} & f_{xy} \\ f_{yx} & f_{yy} \end{bmatrix}. \]

Theorem 4.1 (Equality of Mixed Partials). Let \(f : \mathbb{R}^2 \to \mathbb{R}\). If \(f_{xy}\) and \(f_{yx}\) are defined in some neighborhood of \(\mathbf{a}\) and are continuous at \(\mathbf{a}\), then \(f_{xy}(\mathbf{a}) = f_{yx}(\mathbf{a})\).

If the \(k\)-th partial derivatives of \(f : \mathbb{R}^n \to \mathbb{R}\) are continuous, we write \(f \in C^k\) and say “\(f\) is in class \(C^k\).” For \(f \in C^2\), we have \(f_{xy} = f_{yx}\). More generally, for continuous higher-order partials, the order of differentiation does not matter.

4.3 The Tangent Plane

\[ z = f(a,b) + \frac{\partial f}{\partial x}(a,b)(x - a) + \frac{\partial f}{\partial y}(a,b)(y - b). \]

This definition is formalized in Chapter 5 using the concept of differentiability.

4.4 Linear Approximation for \(z = f(x,y)\)

\[ L_{(a,b)}(x,y) = f(a,b) + \frac{\partial f}{\partial x}(a,b)(x - a) + \frac{\partial f}{\partial y}(a,b)(y - b). \]

The increment form is \(\Delta f \approx f_x(a,b)\,\Delta x + f_y(a,b)\,\Delta y\) for \(\Delta x, \Delta y\) sufficiently small.

4.5 Linear Approximation in Higher Dimensions

\[ \nabla f(\mathbf{a}) = (D_1 f(\mathbf{a}), D_2 f(\mathbf{a}), \ldots, D_n f(\mathbf{a})). \]

\[ L_{\mathbf{a}}(\mathbf{x}) = f(\mathbf{a}) + \nabla f(\mathbf{a}) \cdot (\mathbf{x} - \mathbf{a}). \]

The increment form generalizes to \(\Delta f \approx \nabla f(\mathbf{a}) \cdot \Delta\mathbf{x}\).

Chapter 5: Differentiable Functions

5.1 Definition of Differentiability

The error in the linear approximation is \(R_{1,\mathbf{a}}(\mathbf{x}) = f(\mathbf{x}) - L_{\mathbf{a}}(\mathbf{x})\). For functions of one variable, differentiability guarantees this error tends to zero faster than the displacement. For two variables, the existence of partial derivatives alone does not guarantee this, so we build it into the definition.

\[ \lim_{\mathbf{x}\to\mathbf{a}} \frac{|R_{1,\mathbf{a}}(\mathbf{x})|}{\|\mathbf{x} - \mathbf{a}\|} = 0, \quad \text{where } R_{1,\mathbf{a}}(\mathbf{x}) = f(\mathbf{x}) - L(\mathbf{x}). \]

Theorem 5.1. If \(f : \mathbb{R}^2 \to \mathbb{R}\) is differentiable at \(\mathbf{a} = (a,b)\) with linear function \(L(\mathbf{x}) = f(a,b) + c(x-a) + d(y-b)\), then \(c = f_x(a,b)\) and \(d = f_y(a,b)\). That is, \(L\) is the linear approximation of \(f\) at \(\mathbf{a}\).

Thus, to prove differentiability at \(\mathbf{a}\), one checks that \(\displaystyle\lim_{\mathbf{x}\to\mathbf{a}} \frac{|R_{1,\mathbf{a}}(\mathbf{x})|}{\|\mathbf{x} - \mathbf{a}\|} = 0\) where \(R_{1,\mathbf{a}}(\mathbf{x}) = f(\mathbf{x}) - L_{\mathbf{a}}(\mathbf{x})\). The existence of both partial derivatives at \(\mathbf{a}\) is necessary but not sufficient for differentiability.

\[ z = f(a,b) + \frac{\partial f}{\partial x}(a,b)(x - a) + \frac{\partial f}{\partial y}(a,b)(y - b). \]

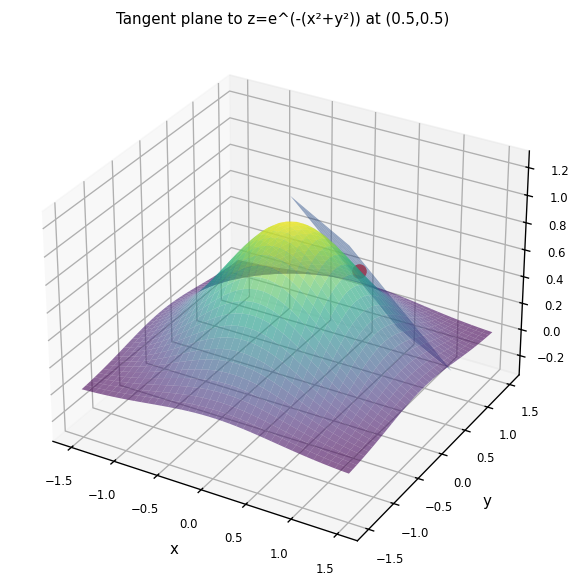

Tangent plane to surface at a point

5.2 Differentiability and Continuity

The existence of partial derivatives does not imply continuity for \(f : \mathbb{R}^2 \to \mathbb{R}\). However, the stronger condition of differentiability does.

Theorem 5.2. Let \(f : \mathbb{R}^2 \to \mathbb{R}\). If \(f\) is differentiable at \(\mathbf{a}\), then \(f\) is continuous at \(\mathbf{a}\).

The converse is false: continuity does not imply differentiability. The contrapositive is useful: if \(f\) is not continuous at \(\mathbf{a}\), then \(f\) is not differentiable at \(\mathbf{a}\).

5.3 Continuous Partial Derivatives and Differentiability

Theorem 5.3 (Differentiability Theorem). Let \(f : \mathbb{R}^2 \to \mathbb{R}\). If \(\frac{\partial f}{\partial x}\) and \(\frac{\partial f}{\partial y}\) are continuous at \(\mathbf{a}\), then \(f\) is differentiable at \(\mathbf{a}\).

This is the primary tool for proving differentiability: compute the partial derivatives, then verify they are continuous using the continuity theorems. The definition of differentiability need only be used at exceptional points. These results generalize to \(f : \mathbb{R}^n \to \mathbb{R}\) with \(n\) partial derivatives.

5.4 The Linear Approximation Revisited

We can write \(f(\mathbf{x}) = f(\mathbf{a}) + \nabla f(\mathbf{a}) \cdot (\mathbf{x} - \mathbf{a}) + R_{1,\mathbf{a}}(\mathbf{x})\). If the partial derivatives of \(f\) are continuous at \(\mathbf{a}\), then \(\frac{|R_{1,\mathbf{a}}(\mathbf{x})|}{\|\mathbf{x} - \mathbf{a}\|} \to 0\) as \(\mathbf{x} \to \mathbf{a}\), meaning the error tends to zero faster than the displacement, and the linear approximation is reliable near \(\mathbf{a}\).

Chapter 6: The Chain Rule

6.1 Basic Chain Rule in Two Dimensions

\[ G'(t_0) = f_x(a,b)\,x'(t_0) + f_y(a,b)\,y'(t_0). \]

In Leibniz notation: \(\frac{dT}{dt} = \frac{\partial T}{\partial x}\frac{dx}{dt} + \frac{\partial T}{\partial y}\frac{dy}{dt}\). In vector form: \(\frac{d}{dt}f(\mathbf{x}(t)) = \nabla f(\mathbf{x}(t)) \cdot \frac{d\mathbf{x}}{dt}\). This vector form holds for any differentiable \(f : \mathbb{R}^n \to \mathbb{R}\).

6.2 Extensions of the Basic Chain Rule

\[ \frac{\partial u}{\partial s} = \frac{\partial u}{\partial x}\frac{\partial x}{\partial s} + \frac{\partial u}{\partial y}\frac{\partial y}{\partial s}, \qquad \frac{\partial u}{\partial t} = \frac{\partial u}{\partial x}\frac{\partial x}{\partial t} + \frac{\partial u}{\partial y}\frac{\partial y}{\partial t}. \]

A dependence (tree) diagram can be used to systematically derive the chain rule for more complex compositions. The algorithm is: (1) identify all paths from the differentiated variable to the differentiating variable; (2) for each link in a path, form the appropriate derivative; (3) multiply along each path and sum over all paths.

6.3 The Chain Rule for Second Partial Derivatives

To compute second derivatives of composite functions, one applies the chain rule to the first derivative expression, using the dependence diagram to keep track of variables. This technique is essential for converting PDEs between coordinate systems (e.g., showing that \(f_{xx} + f_{yy} = f_{rr} + \frac{1}{r}f_r + \frac{1}{r^2}f_{\theta\theta}\) in polar coordinates) and for proving Taylor’s formula.

Chapter 7: Directional Derivatives and the Gradient Vector

7.1 Directional Derivatives

\[ D_{\hat{\mathbf{u}}} f(\mathbf{a}) = \frac{d}{ds} f(\mathbf{a} + s\hat{\mathbf{u}})\Big|_{s=0}. \]

\[ D_{\hat{\mathbf{u}}} f(\mathbf{a}) = \nabla f(\mathbf{a}) \cdot \hat{\mathbf{u}}, \]

where \(\hat{\mathbf{u}}\) is a unit vector.

Choosing \(\hat{\mathbf{u}} = \hat{\mathbf{i}}\) or \(\hat{\mathbf{u}} = \hat{\mathbf{j}}\) recovers \(f_x\) or \(f_y\) respectively. This theorem extends to \(f : \mathbb{R}^n \to \mathbb{R}\) in the expected way.

7.2 The Gradient Vector in Two Dimensions

Theorem 7.2 (Greatest Rate of Change). Suppose \(f : \mathbb{R}^2 \to \mathbb{R}\) is differentiable at \(\mathbf{a}\) and \(\nabla f(\mathbf{a}) \neq \mathbf{0}\). Then the largest value of \(D_{\hat{\mathbf{u}}} f(\mathbf{a})\) is \(\|\nabla f(\mathbf{a})\|\), and occurs when \(\hat{\mathbf{u}}\) is in the direction of \(\nabla f(\mathbf{a})\).

Theorem 7.3 (Gradient Orthogonal to Level Curves). Suppose \(f : \mathbb{R}^2 \to \mathbb{R}\) is differentiable at \(\mathbf{a}\) and \(\nabla f(\mathbf{a}) \neq \mathbf{0}\). Then \(\nabla f(\mathbf{a})\) is orthogonal to the level curve \(f(x,y) = k\) through \(\mathbf{a}\).

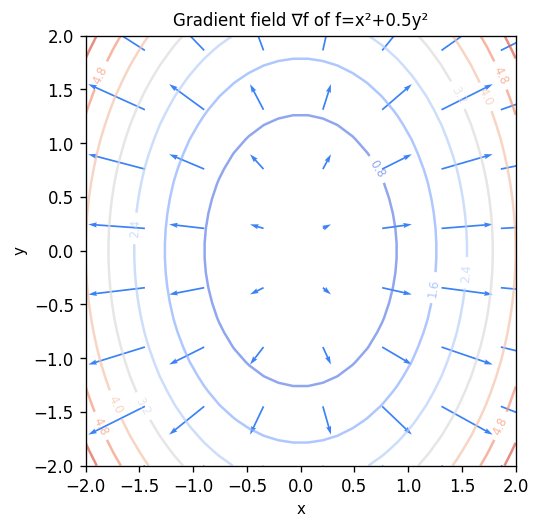

Gradient vector field with contours

7.3 The Gradient Vector in Three Dimensions

Theorem 7.4. Suppose \(f : \mathbb{R}^3 \to \mathbb{R}\) is differentiable and \(\nabla f(\mathbf{a}) \neq \mathbf{0}\). Then \(\nabla f(\mathbf{a})\) is orthogonal to the level surface \(f(\mathbf{x}) = k\) through \(\mathbf{a}\).

\[ \nabla f(\mathbf{a}) \cdot (\mathbf{x} - \mathbf{a}) = 0 \quad \Longleftrightarrow \quad f_x(\mathbf{a})(x - a) + f_y(\mathbf{a})(y - b) + f_z(\mathbf{a})(z - c) = 0. \]

Chapter 8: Taylor Polynomials and Taylor’s Theorem

8.1 The Taylor Polynomial of Degree 2

\[ P_{2,\mathbf{a}}(x,y) = f(\mathbf{a}) + f_x(\mathbf{a})(x-a) + f_y(\mathbf{a})(y-b) + \frac{1}{2}\left[f_{xx}(\mathbf{a})(x-a)^2 + 2f_{xy}(\mathbf{a})(x-a)(y-b) + f_{yy}(\mathbf{a})(y-b)^2\right]. \]

This approximates \(f(x,y)\) near \((a,b)\) with better accuracy than the linear approximation.

8.2 Taylor’s Formula with Second Degree Remainder

\[ f(\mathbf{x}) = f(\mathbf{a}) + f_x(\mathbf{a})(x-a) + f_y(\mathbf{a})(y-b) + R_{1,\mathbf{a}}(\mathbf{x}), \]\[ R_{1,\mathbf{a}}(\mathbf{x}) = \frac{1}{2}\left[f_{xx}(\mathbf{c})(x-a)^2 + 2f_{xy}(\mathbf{c})(x-a)(y-b) + f_{yy}(\mathbf{c})(y-b)^2\right]. \]

\[ |R_{1,\mathbf{a}}(\mathbf{x})| \leq M\|\mathbf{x} - \mathbf{a}\|^2, \quad \text{for all } \mathbf{x} \in N_\delta(\mathbf{a}). \]

8.3 Generalizations

\[ P_{k,\mathbf{a}}(\mathbf{x}) = P_{k-1,\mathbf{a}}(\mathbf{x}) + \frac{1}{k!}[(x-a)D_1 + (y-b)D_2]^k f(\mathbf{a}), \]

where the expression \([(x-a)D_1 + (y-b)D_2]^k\) is expanded using the Binomial Theorem.

\[ f(\mathbf{x}) = P_{k,\mathbf{a}}(\mathbf{x}) + R_{k,\mathbf{a}}(\mathbf{x}), \]

where \(R_{k,\mathbf{a}}(\mathbf{x}) = \frac{1}{(k+1)!}[(x-a)D_1 + (y-b)D_2]^{k+1}f(\mathbf{c})\).

\[ \lim_{\mathbf{x}\to\mathbf{a}} \frac{|f(\mathbf{x}) - P_{k,\mathbf{a}}(\mathbf{x})|}{\|\mathbf{x}-\mathbf{a}\|^k} = 0. \]

Corollary 8.3. If \(f \in C^{k+1}\) in some closed neighborhood \(N(\mathbf{a})\), then there exists \(M > 0\) such that \(|f(\mathbf{x}) - P_{k,\mathbf{a}}(\mathbf{x})| \leq M\|\mathbf{x} - \mathbf{a}\|^{k+1}\) for all \(\mathbf{x} \in N(\mathbf{a})\).

Chapter 9: Critical Points

9.1 Local Extrema and Critical Points

Definition (Local Maximum/Minimum). Given \(f : \mathbb{R}^2 \to \mathbb{R}\):

\((a,b)\) is a local maximum point if \(f(x,y) \leq f(a,b)\) for all \((x,y)\) in some neighborhood of \((a,b)\).
\((a,b)\) is a local minimum point if \(f(x,y) \geq f(a,b)\) for all \((x,y)\) in some neighborhood of \((a,b)\).

\[ f_x(a,b) = 0 = f_y(a,b), \]

or at least one of \(f_x\) or \(f_y\) does not exist at \((a,b)\).

Definition (Critical Point). Let \(f : \mathbb{R}^2 \to \mathbb{R}\). A point \((a,b)\) in the domain of \(f\) is a critical point of \(f\) if \(\frac{\partial f}{\partial x}(a,b) = 0 = \frac{\partial f}{\partial y}(a,b)\), or if at least one of the partial derivatives does not exist at \((a,b)\).

Definition (Saddle Point). A critical point \((a,b)\) of \(f : \mathbb{R}^2 \to \mathbb{R}\) is a saddle point if in every neighborhood of \((a,b)\) there exist points \((x_1,y_1)\) and \((x_2,y_2)\) with \(f(x_1,y_1) > f(a,b)\) and \(f(x_2,y_2) < f(a,b)\).

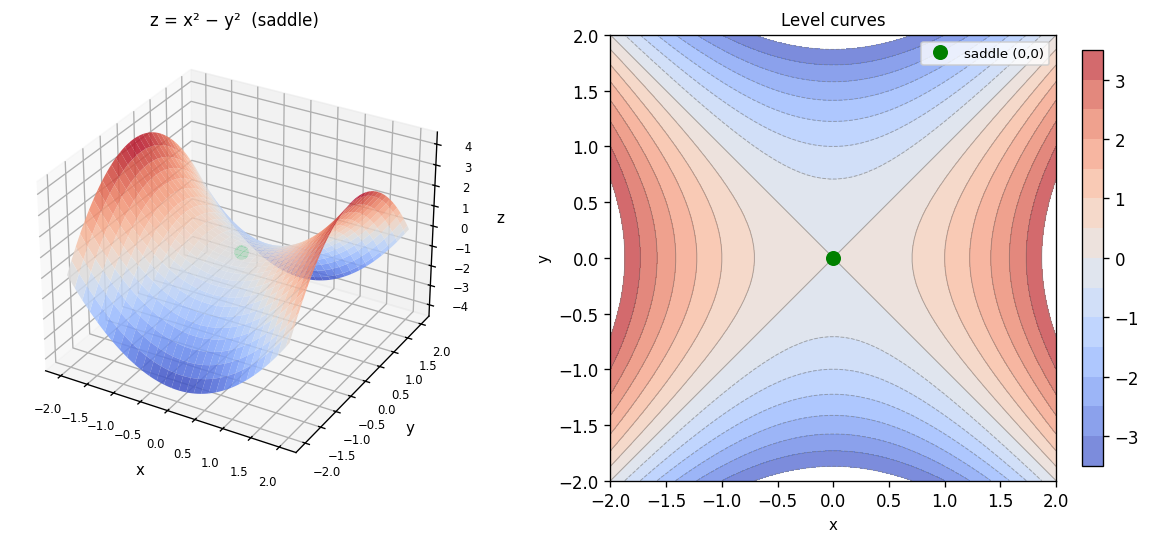

Saddle point z=x²−y² with level curves

9.2 The Second Derivative Test

Definition (Quadratic Form). A function \(Q : \mathbb{R}^2 \to \mathbb{R}\) of the form \(Q(u,v) = a_{11}u^2 + 2a_{12}uv + a_{22}v^2\) is a quadratic form on \(\mathbb{R}^2\). It is positive definite if \(Q > 0\) for all \((u,v) \neq (0,0)\); negative definite if \(Q < 0\); indefinite if \(Q\) takes both signs; and semidefinite otherwise.

Theorem 9.2 (Second Partial Derivative Test). Let \(f : \mathbb{R}^2 \to \mathbb{R}\) with \(f \in C^2\) in some neighborhood of \(\mathbf{a}\), and suppose \(f_x(\mathbf{a}) = 0 = f_y(\mathbf{a})\).

If \(H_f(\mathbf{a})\) is positive definite, then \(\mathbf{a}\) is a local minimum point.
If \(H_f(\mathbf{a})\) is negative definite, then \(\mathbf{a}\) is a local maximum point.
If \(H_f(\mathbf{a})\) is indefinite, then \(\mathbf{a}\) is a saddle point.

Theorem 9.3 (Classification of Quadratic Forms). Let \(Q(u,v) = a_{11}u^2 + 2a_{12}uv + a_{22}v^2\) and let \(D = a_{11}a_{22} - a_{12}^2\). Then:

\(Q\) is positive definite if and only if \(D > 0\) and \(a_{11} > 0\).
\(Q\) is negative definite if and only if \(D > 0\) and \(a_{11} < 0\).
\(Q\) is indefinite if and only if \(D < 0\).
\(Q\) is semidefinite if and only if \(D = 0\).

Note that \(D = \det(H_f)\). If \(H_f(\mathbf{a})\) is semidefinite (i.e., \(D = 0\)), the second derivative test is inconclusive – the critical point is called degenerate and must be analyzed by other means.

Theorem 9.4. Suppose \(f : \mathbb{R} \to \mathbb{R}\) is twice continuously differentiable and strictly convex (i.e., \(f''(x) > 0\) for all \(x\)). Then (1) \(f(x) > L_a(x)\) for all \(x \neq a\), and (2) for \(a < b\), \(f(x) < f(a) + \frac{f(b)-f(a)}{b-a}(x-a)\) for \(x \in (a,b)\).

Theorem 9.5. Suppose \(f : \mathbb{R}^2 \to \mathbb{R}\) has continuous second partial derivatives and is strictly convex (i.e., \(H_f(\mathbf{x})\) is positive definite for all \(\mathbf{x}\)). Then (1) \(f(\mathbf{x}) > L_{\mathbf{a}}(\mathbf{x})\) for all \(\mathbf{x} \neq \mathbf{a}\), and (2) \(f(\mathbf{a} + t(\mathbf{b} - \mathbf{a})) < f(\mathbf{a}) + t[f(\mathbf{b}) - f(\mathbf{a})]\) for \(0 < t < 1\), \(\mathbf{a} \neq \mathbf{b}\).

Theorem 9.6. Suppose \(f : \mathbb{R}^2 \to \mathbb{R}\) has continuous partial derivatives, is strictly convex, and has a critical point \(\mathbf{c}\). Then \(f(\mathbf{x}) > f(\mathbf{c})\) for all \(\mathbf{x} \neq \mathbf{c}\), and \(f\) has no other critical point.

9.3 Proof of the Second Partial Derivative Test

The proof relies on the following technical result about the stability of definiteness under small perturbations.

Lemma 9.1. Let \(\begin{bmatrix} a & b \\ b & c \end{bmatrix}\) be a positive definite matrix. If \(|\tilde{a} - a|\), \(|\tilde{b} - b|\), and \(|\tilde{c} - c|\) are sufficiently small, then \(\begin{bmatrix} \tilde{a} & \tilde{b} \\ \tilde{b} & \tilde{c} \end{bmatrix}\) is also positive definite.

The same lemma holds with “positive definite” replaced by “negative definite” or “indefinite.” The proof of the second derivative test combines this lemma with Taylor’s formula and the continuity of the second partial derivatives.

Chapter 10: Optimization Problems

10.1 Extreme Value Theorem

Definition (Absolute Maximum/Minimum). Given \(f : \mathbb{R}^2 \to \mathbb{R}\) and \(S \subset \mathbb{R}^2\):

\(\mathbf{a} \in S\) is an absolute maximum point of \(f\) on \(S\) if \(f(\mathbf{x}) \leq f(\mathbf{a})\) for all \(\mathbf{x} \in S\).
\(\mathbf{a} \in S\) is an absolute minimum point of \(f\) on \(S\) if \(f(\mathbf{x}) \geq f(\mathbf{a})\) for all \(\mathbf{x} \in S\).

Definition (Bounded Set). A set \(S \subset \mathbb{R}^2\) is bounded if and only if it is contained in some neighborhood of the origin.

Definition (Boundary Point). Given \(S \subset \mathbb{R}^2\), a point \(\mathbf{b} \in \mathbb{R}^2\) is a boundary point of \(S\) if every neighborhood of \(\mathbf{b}\) contains at least one point in \(S\) and one point not in \(S\). The set of all boundary points is denoted \(B(S)\).

Definition (Closed Set). A set \(S \subset \mathbb{R}^2\) is closed if and only if \(S\) contains all its boundary points.

\[ f(\mathbf{c}_1) \leq f(\mathbf{x}) \leq f(\mathbf{c}_2) \quad \text{for all } \mathbf{x} \in S. \]

10.2 Algorithm for Extreme Values

Algorithm (Extreme Values on a Closed Bounded Set). To find the maximum/minimum of \(f : \mathbb{R}^2 \to \mathbb{R}\) on a closed and bounded set \(S \subset \mathbb{R}^2\):

Find all critical points of \(f\) in \(S\).
Find the maximum and minimum of \(f\) on the boundary \(B(S)\).
Evaluate \(f\) at all points from steps (1) and (2).

The largest (smallest) value found is the absolute maximum (minimum) of \(f\) on \(S\).

10.3 Optimization with Constraints

Algorithm (Lagrange Multipliers). To find the maximum/minimum of a differentiable function \(f(x,y)\) subject to the constraint \(g(x,y) = k\), evaluate \(f\) at all points \((a,b)\) satisfying one of:

\(\nabla f(a,b) = \lambda \nabla g(a,b)\) and \(g(a,b) = k\),
\(\nabla g(a,b) = \mathbf{0}\) and \(g(a,b) = k\),
\((a,b)\) is an endpoint of the curve \(g(x,y) = k\).

The maximum/minimum is the largest/smallest value of \(f\) at these points.

Condition (1) requires solving three equations (\(f_x = \lambda g_x\), \(f_y = \lambda g_y\), \(g = k\)) for three unknowns \(x, y, \lambda\). The scalar \(\lambda\) is the Lagrange multiplier and can usually be eliminated.

For functions of three variables, the algorithm generalizes: find points where \(\nabla f = \lambda \nabla g\) on the constraint surface \(g(x,y,z) = k\), check where \(\nabla g = \mathbf{0}\), and check boundary points of the surface.

More generally, for \(f : \mathbb{R}^n \to \mathbb{R}\) with \(r\) constraints \(g_1(\mathbf{x}) = 0, \ldots, g_r(\mathbf{x}) = 0\), the condition becomes \(\nabla f(\mathbf{a}) = \lambda_1 \nabla g_1(\mathbf{a}) + \cdots + \lambda_r \nabla g_r(\mathbf{a})\).

Chapter 11: Coordinate Systems

11.1 Polar Coordinates

A point \(P\) in the plane is represented by polar coordinates \((r, \theta)\) where \(r \geq 0\) is the distance from the origin and \(\theta\) is the angle from the polar axis. Unlike Cartesian coordinates, polar coordinates are not unique: \((r, \theta) = (r, \theta + 2\pi k)\) for any integer \(k\).

\[ x = r\cos\theta, \quad y = r\sin\theta, \qquad r = \sqrt{x^2 + y^2}, \quad \tan\theta = \frac{y}{x}. \]

The area enclosed by a polar curve \(r = f(\theta)\) from \(\theta = \alpha\) to \(\theta = \beta\) is \(A = \int_\alpha^\beta \frac{1}{2}[f(\theta)]^2\,d\theta\).

11.2 Cylindrical Coordinates

\[ x = r\cos\theta, \quad y = r\sin\theta, \quad z = z, \qquad r \geq 0,\ 0 \leq \theta < 2\pi. \]

11.3 Spherical Coordinates

\[ x = \rho\sin\phi\cos\theta, \quad y = \rho\sin\phi\sin\theta, \quad z = \rho\cos\phi, \qquad \rho \geq 0,\ 0 \leq \phi \leq \pi,\ 0 \leq \theta < 2\pi. \]

Chapter 12: Mappings of \(\mathbb{R}^2\) into \(\mathbb{R}^2\)

12.1 The Geometry of Mappings

A mapping \(F : \mathbb{R}^2 \to \mathbb{R}^2\) is defined by component functions: \((u,v) = F(x,y) = (f(x,y), g(x,y))\). It transforms regions in the \(xy\)-plane into regions in the \(uv\)-plane. For a linear mapping, the image of a straight line is a straight line. For a nonlinear mapping (such as polar to Cartesian), the image of a line may be a curve.

12.2 The Linear Approximation of a Mapping

\[ DF = \begin{bmatrix} \frac{\partial f}{\partial x} & \frac{\partial f}{\partial y} \\[6pt] \frac{\partial g}{\partial x} & \frac{\partial g}{\partial y} \end{bmatrix}. \]

The linear approximation for mappings is \(\Delta\mathbf{u} \approx DF(\mathbf{a})\,\Delta\mathbf{x}\). For a general mapping \(F : \mathbb{R}^n \to \mathbb{R}^m\), the derivative matrix is the \(m \times n\) matrix \([DF]_{ij} = \frac{\partial f_i}{\partial x_j}\).

12.3 Composite Mappings and the Chain Rule

\[ D(F \circ G)(\mathbf{x}) = DF(\mathbf{u})\,DG(\mathbf{x}). \]

The derivative matrix of the composite mapping is the matrix product of the individual derivative matrices.

Chapter 13: Jacobians and Inverse Mappings

13.1 The Inverse Mapping Theorem

Definition (One-to-One). A mapping \(F : \mathbb{R}^2 \to \mathbb{R}^2\) is one-to-one on \(D_{xy} \subset \mathbb{R}^2\) if \(F(\mathbf{a}) = F(\mathbf{b})\) implies \(\mathbf{a} = \mathbf{b}\) for all \(\mathbf{a}, \mathbf{b} \in D_{xy}\).

Definition (Inverse Mapping). If \(F\) is one-to-one on \(D_{xy}\) with image \(D_{uv}\), then \(F\) has an inverse mapping \(F^{-1}\) such that \((x,y) = F^{-1}(u,v)\) if and only if \((u,v) = F(x,y)\).

\[ DF^{-1}(\mathbf{u})\,DF(\mathbf{x}) = I. \]

\[ \frac{\partial(u,v)}{\partial(x,y)} = \det[DF(\mathbf{x})] = \det\begin{bmatrix} \frac{\partial u}{\partial x} & \frac{\partial u}{\partial y} \\[4pt] \frac{\partial v}{\partial x} & \frac{\partial v}{\partial y} \end{bmatrix}. \]

Corollary 13.1. If \(F\) has an inverse mapping \(F^{-1}\) (both with continuous partials), then the Jacobian of \(F\) is non-zero: \(\frac{\partial(u,v)}{\partial(x,y)} \neq 0\).

\[ \frac{\partial(x,y)}{\partial(u,v)} = \frac{1}{\frac{\partial(u,v)}{\partial(x,y)}}. \]

Theorem 13.2 (Inverse Mapping Theorem). Consider \(F : \mathbb{R}^2 \to \mathbb{R}^2\) defined by \(u = f(x,y)\), \(v = g(x,y)\). If \(F\) has continuous partial derivatives in some neighborhood of \((a,b)\) and \(\frac{\partial(u,v)}{\partial(x,y)} \neq 0\) at \((a,b)\), then there is a neighborhood of \((a,b)\) in which \(F\) has an inverse mapping \(F^{-1}\) with continuous partial derivatives.

13.2 Geometrical Interpretation of the Jacobian

\[ \Delta A_{uv} \approx \left|\frac{\partial(u,v)}{\partial(x,y)}\right| \Delta A_{xy}. \]

For a linear mapping this is exact. In three dimensions, the Jacobian gives the volume scaling factor: \(\Delta V_{uvw} \approx \left|\frac{\partial(u,v,w)}{\partial(x,y,z)}\right|\Delta V_{xyz}\).

\[ \frac{\partial(u_1,\ldots,u_n)}{\partial(x_1,\ldots,x_n)} = \det[DF(\mathbf{x})]. \]

13.3 Constructing Mappings

When performing change of variables in integrals, one needs to construct an invertible mapping transforming a complicated region into a simpler one (e.g., a rectangle or unit square). The strategy is to identify pairs of bounding curves and choose component functions whose level sets coincide with these curves.

Chapter 14: Double Integrals

14.1 Definition of Double Integrals

Definition (Integrable). A function \(f : \mathbb{R}^2 \to \mathbb{R}\) which is bounded on a closed bounded set \(D \subset \mathbb{R}^2\) is integrable on \(D\) if all Riemann sums approach the same value as the partition norm \(|\Delta P| \to 0\).

\[ \iint_D f(x,y)\,dA = \lim_{|\Delta P| \to 0} \sum_{i=1}^n f(x_i,y_i)\,\Delta A_i. \]

If \(f\) is continuous on \(D\), then \(f\) is integrable on \(D\). Interpretations include: area (\(f = 1\)), volume (\(f \geq 0\)), mass (with \(f\) as density), and probability.

Theorem 14.1 (Linearity). \(\displaystyle\iint_D (f+g)\,dA = \iint_D f\,dA + \iint_D g\,dA\) and \(\displaystyle\iint_D cf\,dA = c\iint_D f\,dA\).

Theorem 14.2 (Basic Inequality). If \(f(x,y) \leq g(x,y)\) for all \((x,y) \in D\), then \(\displaystyle\iint_D f\,dA \leq \iint_D g\,dA\).

Theorem 14.3 (Absolute Value Inequality). \(\displaystyle\left|\iint_D f\,dA\right| \leq \iint_D |f|\,dA\).

Theorem 14.4 (Decomposition). If \(D\) is decomposed into \(D_1\) and \(D_2\) by a piecewise smooth curve, then \(\displaystyle\iint_D f\,dA = \iint_{D_1} f\,dA + \iint_{D_2} f\,dA\).

14.2 Iterated Integrals

\[ \iint_D f(x,y)\,dA = \int_{x_\ell}^{x_u} \int_{y_\ell(x)}^{y_u(x)} f(x,y)\,dy\,dx. \]

The order of integration can be reversed when the region is described as \(x_\ell(y) \leq x \leq x_u(y)\), \(y_\ell \leq y \leq y_u\). The choice of order depends on the shape of \(D\) and the form of the integrand.

14.3 The Change of Variable Theorem

\[ \iint_{D_{xy}} H(x,y)\,dx\,dy = \iint_{D_{uv}} H(f(u,v), g(u,v))\left|\frac{\partial(x,y)}{\partial(u,v)}\right|du\,dv. \]

\[ \iint_{D_{xy}} H(x,y)\,dx\,dy = \iint_{D_{r\theta}} H(r\cos\theta, r\sin\theta)\,r\,dr\,d\theta. \]

Chapter 15: Triple Integrals

15.1 Definition of Triple Integrals

Definition (Integrable, 3D). A function \(f : \mathbb{R}^3 \to \mathbb{R}\) bounded on a closed bounded set \(D \subset \mathbb{R}^3\) is integrable on \(D\) if all Riemann sums approach the same value as \(|\Delta P| \to 0\).

\[ \iiint_D f(x,y,z)\,dV = \lim_{|\Delta P| \to 0} \sum_{i=1}^n f(x_i,y_i,z_i)\,\Delta V_i. \]

\[ f_{\text{av}} = \frac{1}{V(D)}\iiint_D f(x,y,z)\,dV. \]

The triple integral satisfies the same linearity, inequality, and decomposition properties as the double integral.

15.2 Iterated Integrals

\[ \iiint_D f(x,y,z)\,dV = \iint_{D_{xy}} \int_{z_\ell(x,y)}^{z_u(x,y)} f(x,y,z)\,dz\,dA. \]

The order of integration can be chosen for convenience. A triple integral can be written as an iterated integral in \(3! = 6\) ways.

15.3 The Change of Variable Theorem

\[ \iiint_{D_{xyz}} H(x,y,z)\,dx\,dy\,dz = \iiint_{D_{uvw}} H(F(u,v,w))\left|\frac{\partial(x,y,z)}{\partial(u,v,w)}\right|du\,dv\,dw. \]

For cylindrical coordinates: \(\frac{\partial(x,y,z)}{\partial(r,\theta,z)} = r\).

For spherical coordinates: \(\frac{\partial(x,y,z)}{\partial(\rho,\theta,\phi)} = \rho^2 \sin\phi\).

Appendix A: Implicitly Defined Functions

A.1 Implicit Differentiation

\[ g'(x) = -\frac{f_x(x, g(x))}{f_y(x, g(x))}, \quad \text{provided } f_y \neq 0. \]

For \(f(x,y,z) = 0\) defining \(z = g(x,y)\) implicitly, the same technique gives \(g_x = -\frac{f_x}{f_z}\) and \(g_y = -\frac{f_y}{f_z}\), provided \(f_z \neq 0\).

A.2 The Implicit Function Theorem

Theorem A.1 (Implicit Function Theorem, 2D). Let \(f : \mathbb{R}^2 \to \mathbb{R}\), \(f \in C^1\) in a neighborhood of \((a,b)\). If \(f(a,b) = 0\) and \(f_y(a,b) \neq 0\), then there exists a neighborhood of \((a,b)\) in which the equation \(f(x,y) = 0\) has a unique solution \(y = g(x)\), where \(g : \mathbb{R} \to \mathbb{R}\) has a continuous derivative.

Corollary A.1. If \(f : \mathbb{R}^2 \to \mathbb{R}\), \(f \in C^1\), \(f(a,b) = 0\), and \(\nabla f(a,b) \neq \mathbf{0}\), then near \((a,b)\) the equation \(f(x,y) = 0\) describes a smooth curve whose tangent at \((a,b)\) is orthogonal to \(\nabla f(a,b)\). If \(f_y(a,b) \neq 0\), the curve can be written as \(y = g(x)\); if \(f_x(a,b) \neq 0\), it can be written as \(x = h(y)\).

Theorem A.2 (Implicit Function Theorem, 3D). Let \(f : \mathbb{R}^3 \to \mathbb{R}\), \(f \in C^1\) in a neighborhood of \(\mathbf{a}\). If \(f(\mathbf{a}) = 0\) and \(f_z(\mathbf{a}) \neq 0\), then there exists a neighborhood of \(\mathbf{a}\) in which \(f(x,y,z) = 0\) has a unique solution \(z = g(x,y)\), where \(g : \mathbb{R}^2 \to \mathbb{R}\) has continuous partial derivatives.

Corollary A.2. If \(f : \mathbb{R}^3 \to \mathbb{R}\) has continuous partial derivatives, \(f(\mathbf{a}) = 0\), and \(\nabla f(\mathbf{a}) \neq \mathbf{0}\), then near \(\mathbf{a}\) the equation \(f(x,y,z) = 0\) describes a smooth surface in \(\mathbb{R}^3\) whose tangent plane at \(\mathbf{a}\) is orthogonal to \(\nabla f(\mathbf{a})\).

The key to remembering the theorem: the partial derivative that must be nonzero is the one with respect to the variable you wish to solve for.
